Explore our Lubricity Analyzers.

Discover our sophisticated range of lubricity testers, engineered to meet the stringent requirements of evaluating fuels and lubricants friction and wear prevention.

Our collection includes the High Frequency Reciprocating Rig (HFRR) compliant with ASTM D6079, Ball-on-Cylinder Lubricity Evaluator (BOCLE) in line with ASTM D5001, and the Four Ball Tester, adhering to ASTM D4172 and D5183 standards and more. These precision instruments are indispensable for ensuring the performance and longevity of mechanical systems in automotive, aerospace, and industrial applications. Explore our range to find the lubricity tester that aligns with your specific testing needs.

Lubricity
New

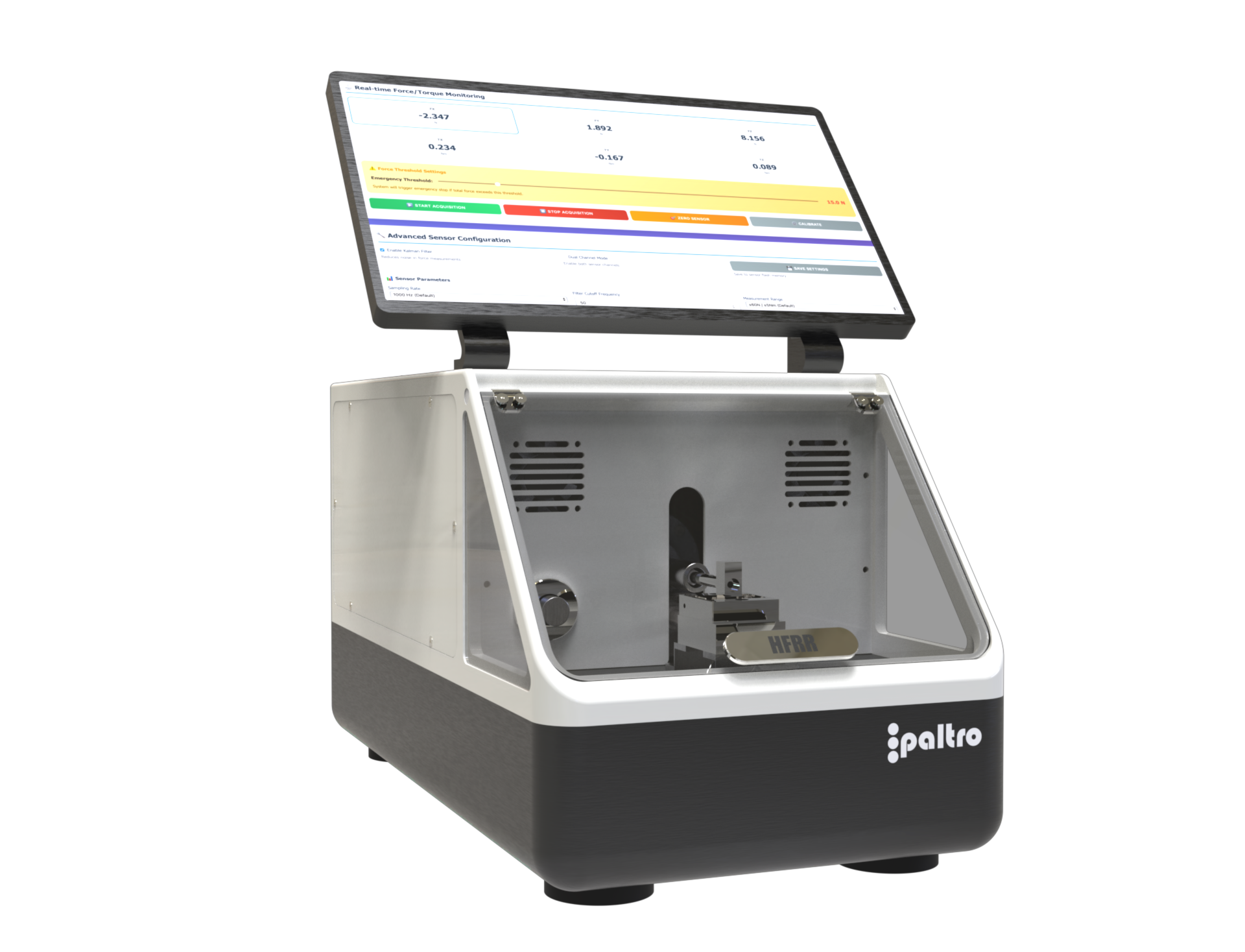

HFRR

HFRR-4.2

Compact, fully integrated HFRR system  with data acquisition.
ASTM D6079, D7688, ISO12156-1 and more
Request Quote
Lubricity
New

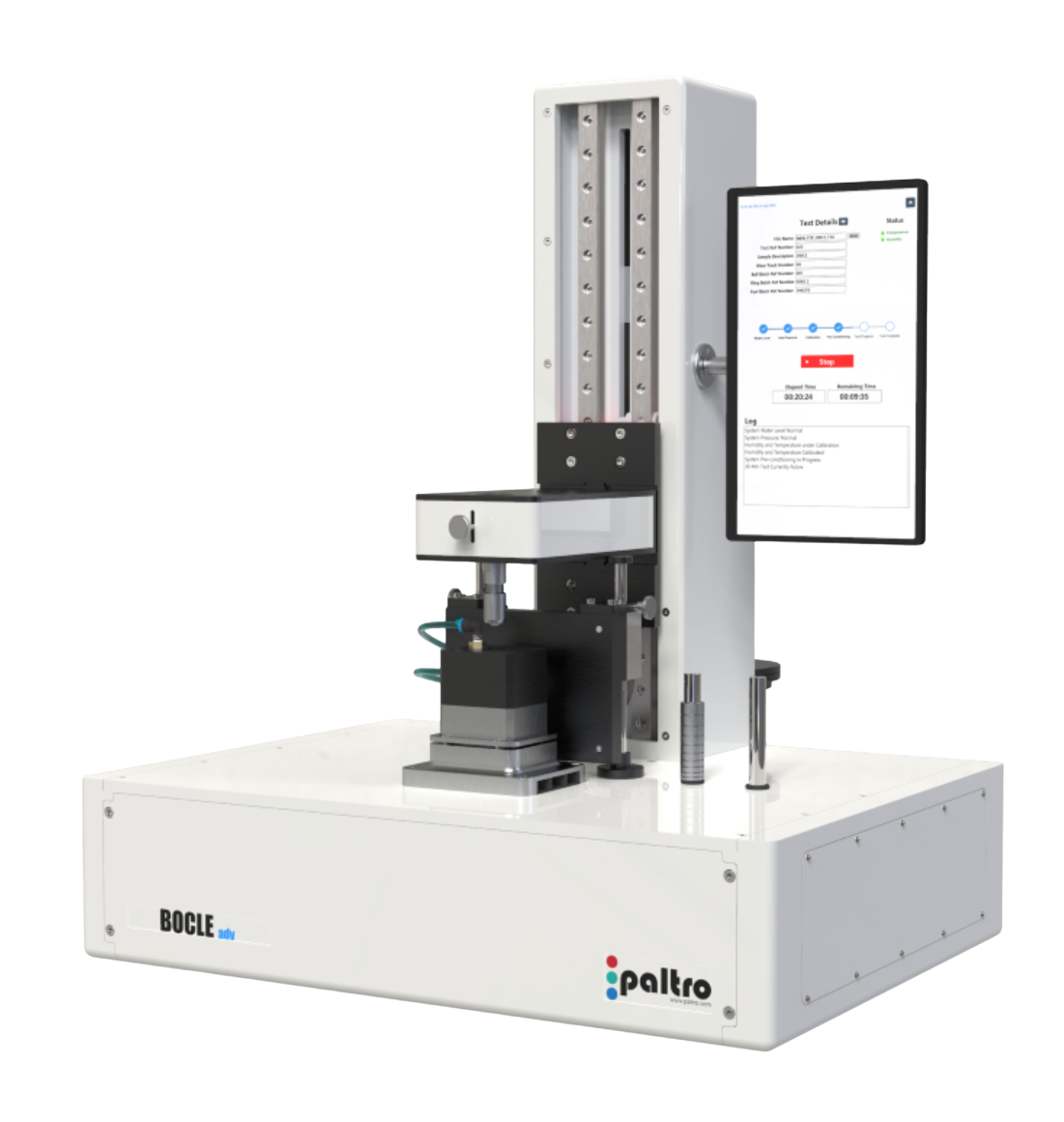

BOCLE

BOCLE-2

A fully automated Ball on Cylinder Lubricity Evaluation system with data acquisition.
ASTM D5001
Visit Product Page
Lubricity
New

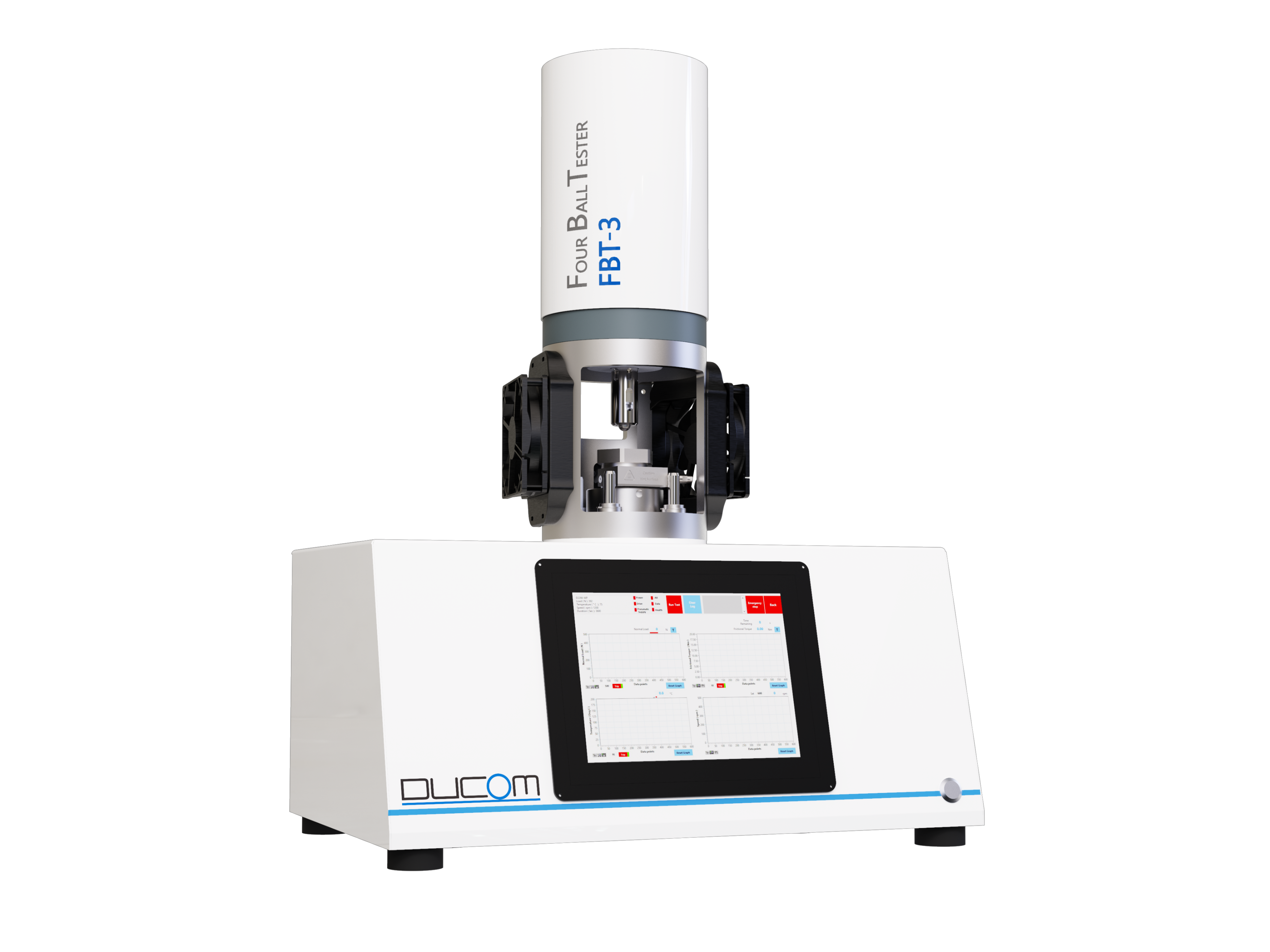

Four Ball Tester

FBT-3

Compact, fully automatic with integrated data acquisition.
ASTM D2266, D2596, D2783, D4172, D5183, IP 239, DIN 51350-2,3,4,5
Request Quote

Technical Specifications:

Frequency: 10 to 200 Hz

Stroke: 20 µm to 2.0 mm

Load: 0 to 1.0 kg (dead weight)

Friction Force: 10.0 N (Max)

Temperature:
Ambient to 150 deg C (Ambient to 400 deg C is optional)

Upper Specimen (Ball):
6.0 mm diameter

Lower Specimen (Disk):
10.0 mm dia x 3 mm thick

Power:
100 to 240 VAC, 50/60 Hz

Technical Specifications:

Load: 1000 g (500g weight) (±1g)

Rotational speed: 240 ± 1 rpm

Fluid Volume: 50 ± 1.0 mL

Fluid Temperature: 25 ± 1°C

Flow rate: 3.8 ± 0.1 lpm

Fuel conditioning: 15 min

Conditioned Air: 10 ± 0.2% RH

Power: 100 to 240 VAC, 50/60 Hz

Technical Specifications:

Speed: 300 to 3000 rpm

Load: 100 to 10,000 N

Friction Force: 0 to 200 N

Friction Torque: 0 to 16 Nm

Temperature:
Up to 90 deg C (200 deg C optional)

Shear Rate:
107 per second (KRL Tapered Roller Bearing attachment is optional)
