Discover our range of ASTM-compliant flash point testers, designed to meet specific testing requirements.
Our selection includes testers adhering to ASTM D92 Cleveland Open Cup method, ASTM D93 Pensky-Martens Closed Cup method and ASTM D6450, D7094 Micro Continuously Closed Cup Flash Point Tester. These precision instruments ensure accurate and reliable flash point determinations, essential for safety and regulatory compliance in industries handling flammable and combustible liquids. Explore our collection to find the perfect flash point tester for your application needs.

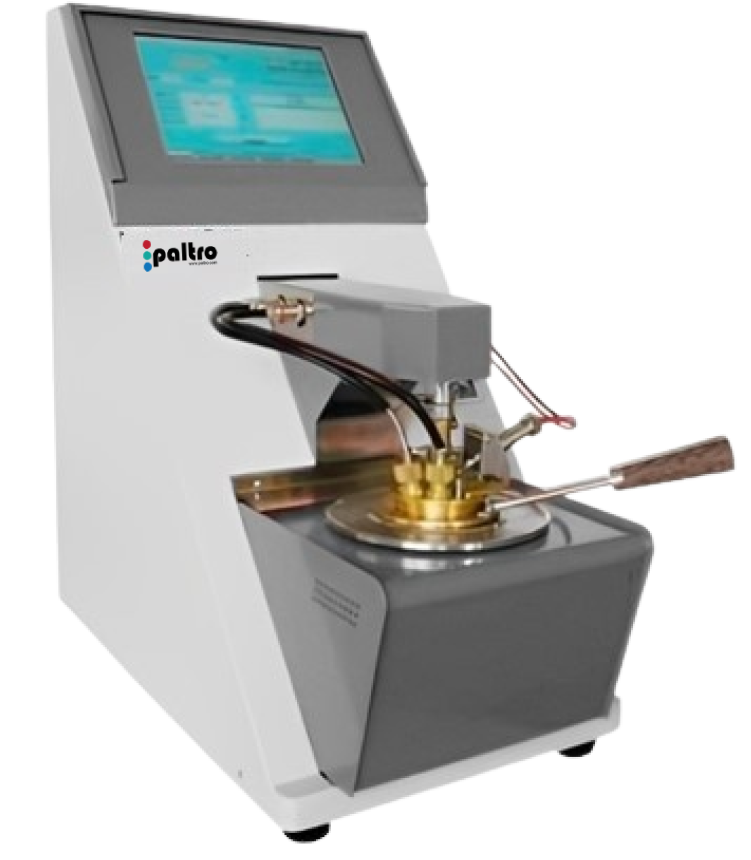

Technical Specifications
Temp Range: 40 ̊C to 370 ̊C
Temp Resolution: 0.1 ̊C
Heating rate:
5~6 °C/min (ASTM D93 A)
1~1.5 °C/min (ASTM D93 B)
2.5~3.5 °C/min (ASTM D93 C)
Stir speed:
90~120 r/min (ASTM D93 A)
250±10 r/min (ASTM D93 B)
90~120 r/min (ASTM D93 C)
Power:
115V/60Hz (or) 220V/50Hz
Weights & Dimensions:
280 X 480 X 490 mm
21 Kg

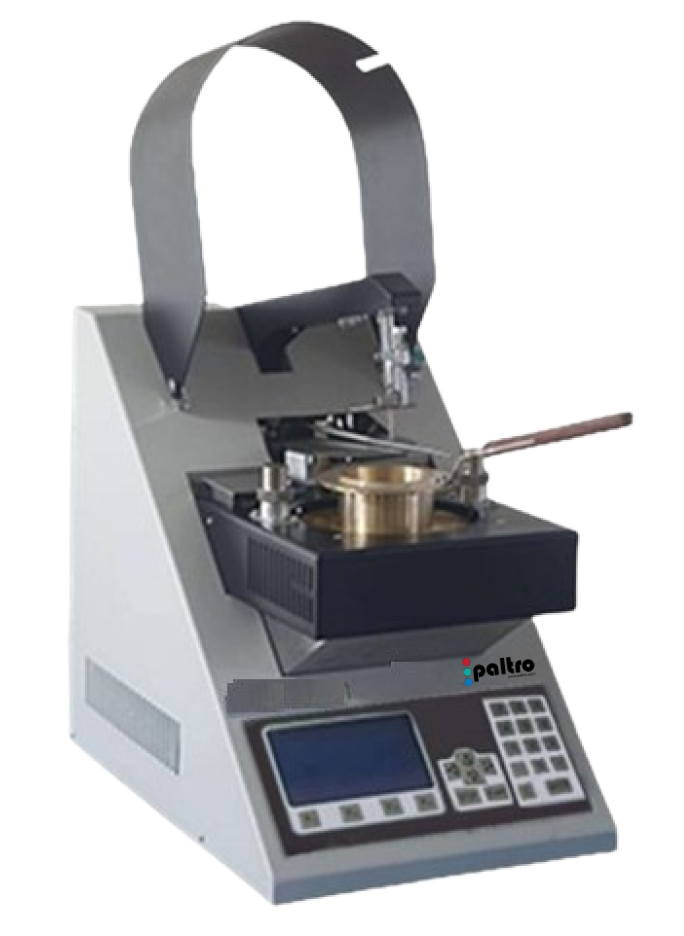

Technical Specifications
Temp Range: 79 ̊C to 400 ̊C
Temp Resolution: 0.1 ̊C
Heating rate:
4~17 °C/min (ASTM D92)
5~6 °C/min (ASTM D92)
Flame Dia:
3.2~4.8 mm
Flame Height:
<2 mm to rim of test cup
Time of Flame Across Test Cup:
1s +/- 0.1s
Power:
115V/60Hz (or) 220V/50Hz
Weights & Dimensions:
380 x 440 X 375 mm
20 Kg
Technical Specifications
Sample Qty:
1 ml (ASTM D6450)
2ml (ASTM D7094)
Temperature Range: 10 to 220°C
Temperature Stability: ±0.1°C
Pressure Range: 0 to 200 KPa
Memory: 10,000 samples
Power:
115V/60Hz (or) 220V/50Hz
Weights & Dimensions:
280 x 470 x 270 mm
15 Kg
