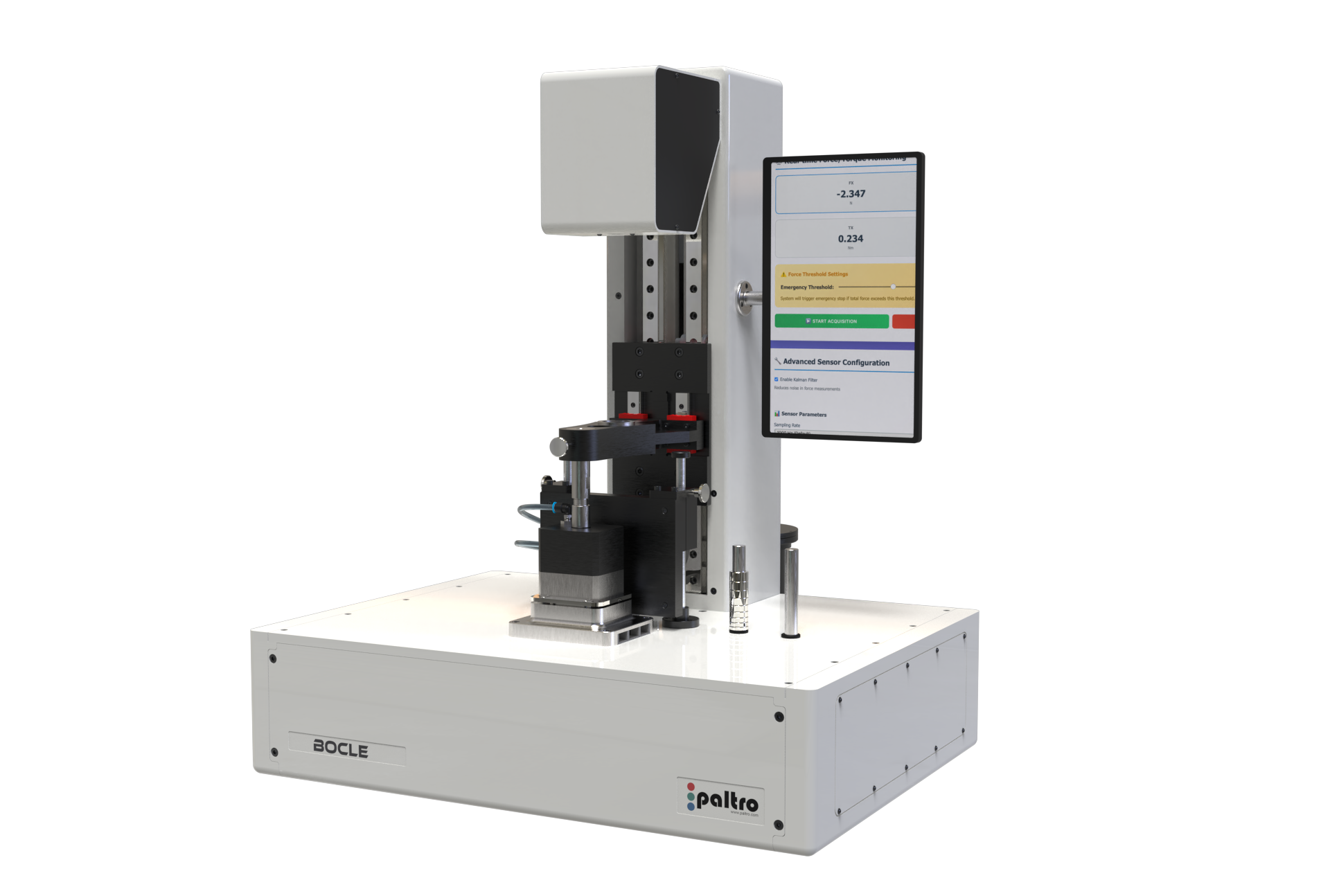

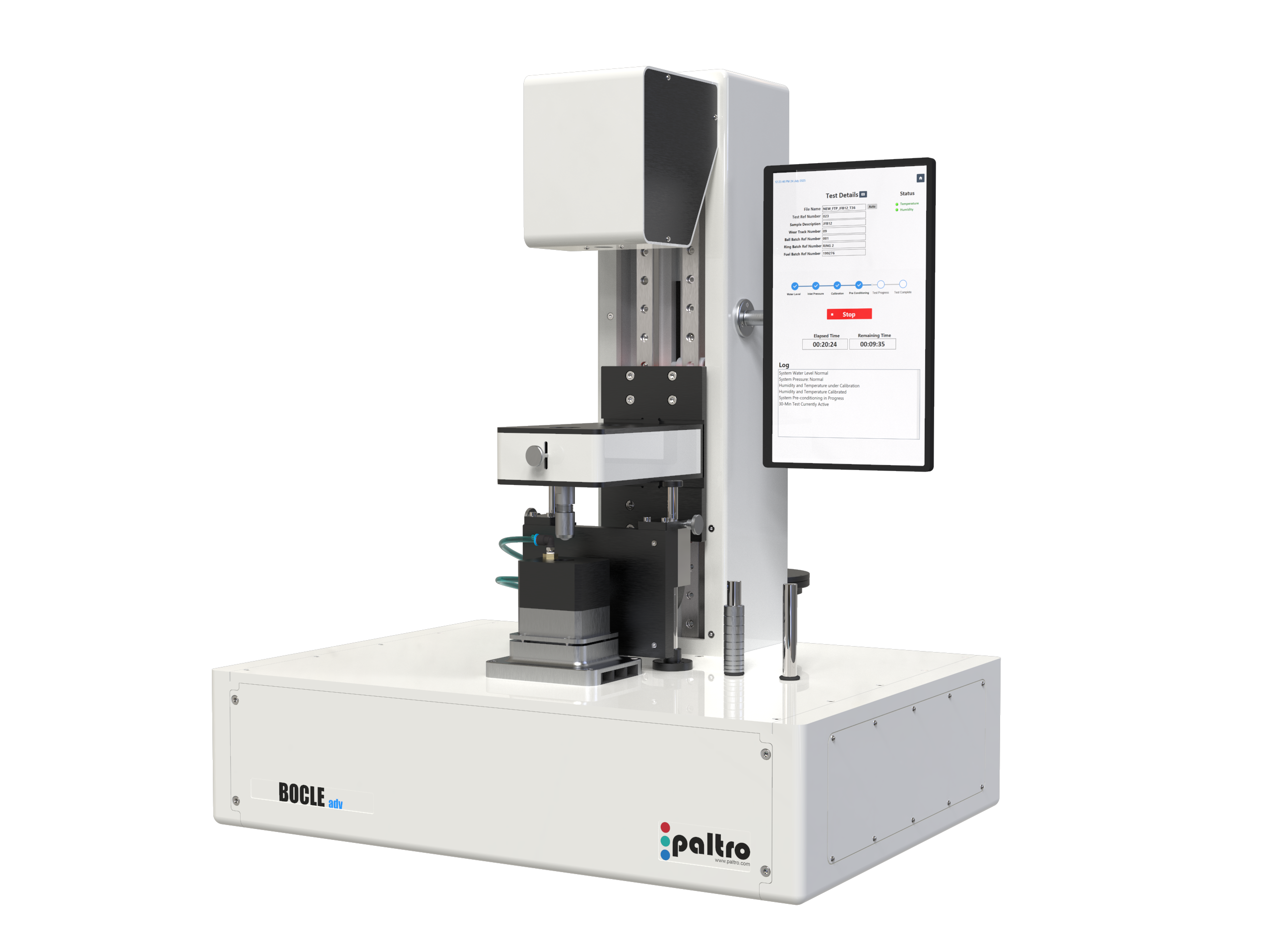

Ball on Cylinder Lubricity Evaluator

BOCLE 2.0

Fully automated aviation turbine fuel lubricity tester designed for the modern lab to meet the demands of users that expect nothing but the best.

Complies with ASTM D5001 standard to provide repeatable measurements with the convenience of automation for effortless testing.
BOCLE 2.0

Fully automated for continuous testing

Features

Quickly setup and execute a test from the software interface with a single click. The controller monitors the standard test conditions and executes both pretreatment and test phases without user intervention. Continuous data logging ensures traceability.

Automated hybrid loading

Calibrated deadweight assembly that is automatically applied after completion of pre-treatment step.

Automated test sequence

Switching from pre-treatment to test phase is auto-executed with synchronized change in flow valves and rates

Multi-test capability

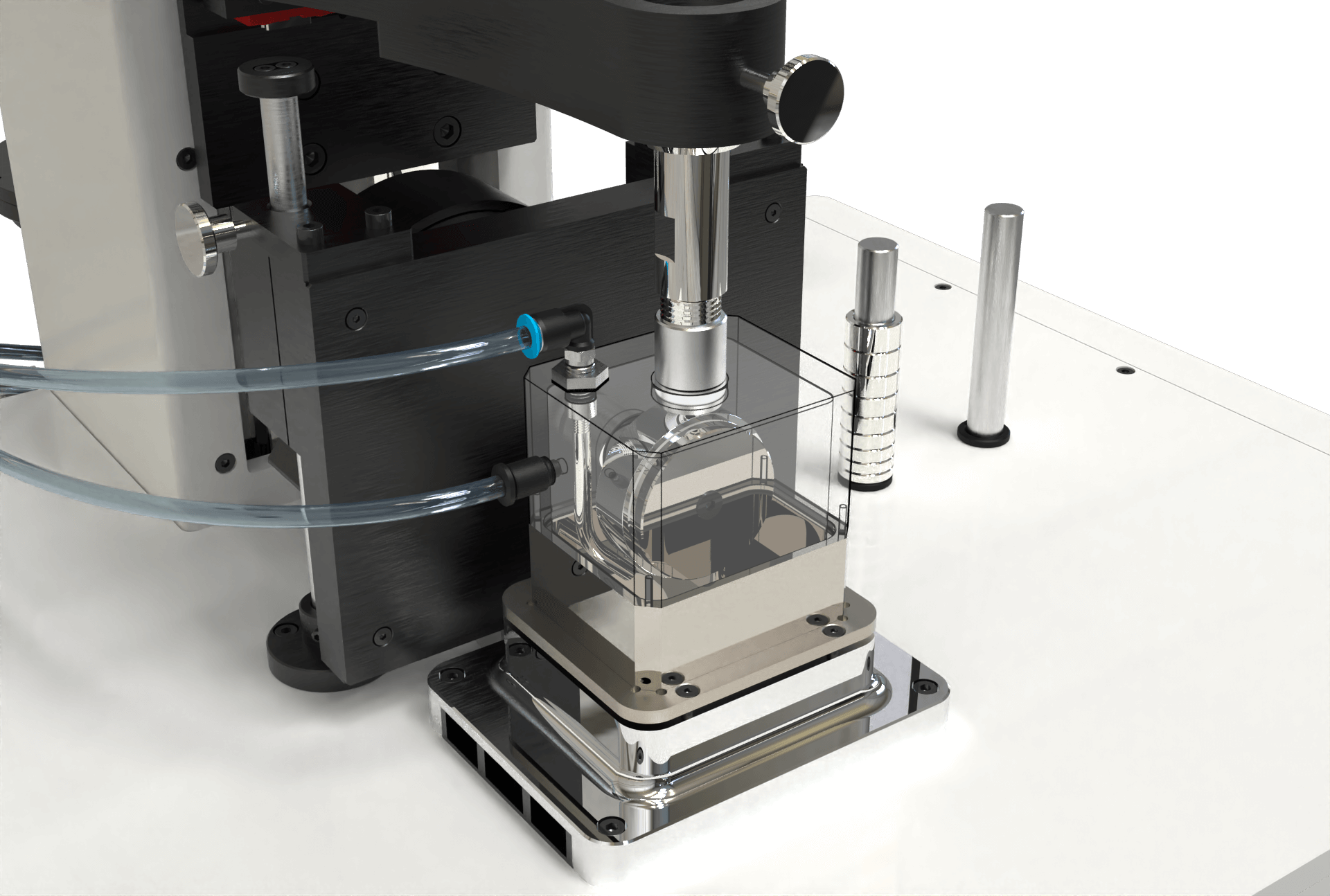

Numbered spacers for offset positioning allows 10 tests per ring to maximize consumable utilization.

Automated conditioned air unit

Conditioned air unit with dryer, control valves and sensors has a small footprint and requires only a compressed air line
Technical Specifications
Load :1000 ± 1 g
Speed : 240 ± 1 rpm
Fluid volume 50 ± 1 ml
Fluid temperature : 25 ± 1 deg C
Conditioned air : 10 ± 0.2% RH at 25 deg C
Fluid pre-treatment : 0.5 L/min flowing through, 3.3 L/min over the fluid for 15 min (no load)
Fluid testing : 3.8 L/min flowing over the fluid for 30 min (load applied)
Power supply : 100-230 V, 50/60 Hz
